5.8G 600mw FPV Transmitter/ Mini 32CH MINI600 with Digital Display for DJI Phantom 2/ QAV250 Quadcopter Multi-rotor Multicopter

MINI600
Price:
USD
$8.46
    Please select the information you wantX
  • Type:
    Straight JST plug Straight Dupon plug L Type JST plug
Quantity:
-
+
(298 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(18)

Features:

1. Characterizes by ultra-light weight, ultra-small size, saving installation space and reduce flight weight.

2. 32-channel digital transducer frequency, reverse power protection, stable performance to reduce fever, foot 600MW power ultra-long transmission distance.

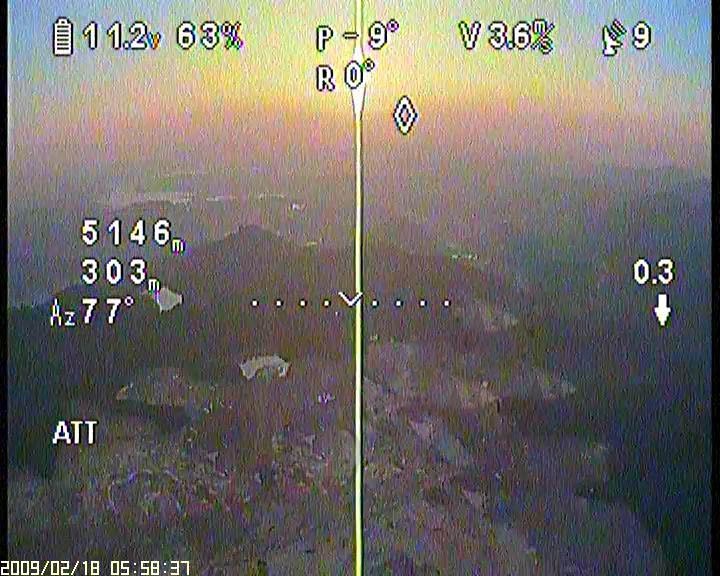

3. Stable signal on DJI Phantom 2 over 5KM after pro-test flight by our technical engineer.

MINI600_CT(1)




Specifications:

-Power:  600mw/ 27dbm

-Voltage:  6V-28V DC

-Working Current:  310mA @12V

-Channels:  32

-Dimension:  23x35x7.7mm

-Weight:  13g

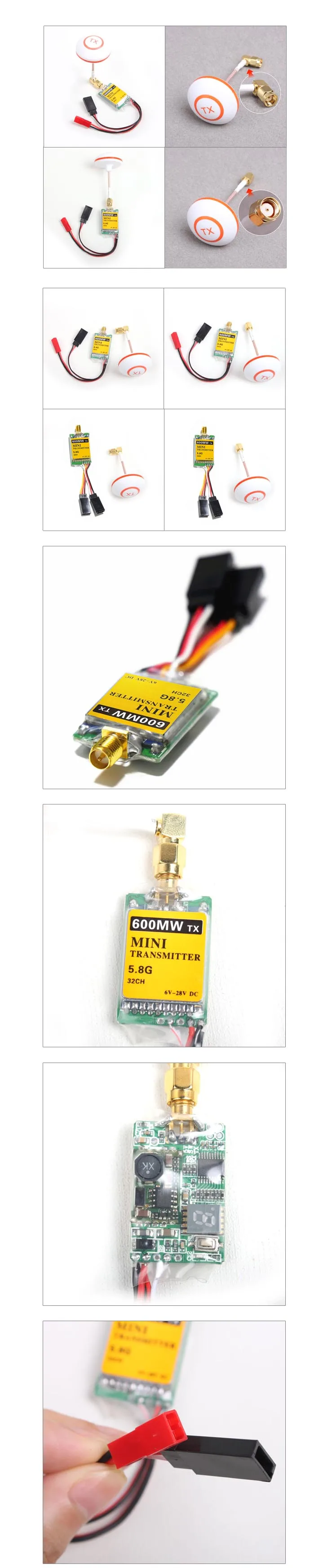

Configurations:

1, Clover mushroom antenna, straight type, 1pc JST plug and 1pc Dupon plug (without audio input line, can weld audio pad), more convenient to contact the batteries with JST plug;

2, Clover mushroom antenna, straight type, 2pcs Dupon plug (with audio input line);

3, Clover mushroom antenna, L type, 1pc JST plug and 1pc Dupon plug (without audio input line, can weld audio pad), more convenient to contact the batteries with JST plug;

4, Clover mushroom antenna, L type, 2pcs Dupon plug (with audio input line);



Package List:

Transmitter x1


Kind Remark:

To connect 12V camera, the input voltage must 3S(12V).

SDS_CT2


Button Description:

Name

Description

Function



Short press button once

Change channels from 1~8

Long press button 2 seconds

Change frequency group A~D



Frequency:

A1   5.645G

B1   5.740G

C1   5.725G

D1   5.733G

A2   5.665G

B2   5.760G

C2  5.745G

D2   5.752G

A3   5.685G

B3   5.780G

C3  5.765G

D3   5.771G

A4   5.705G

B4   5.800G

C4   5.785G

D4   5.790G

A5   5.885G

B5   5.820G

C5   5.805G

D5   5.809G

A6   5.905G

B6   5.840G

C6  5.825G

D6   5.828G

A7   5.925G

B7   5.860G

C7   5.845G

D7   5.847G

A8   5.945G

B8   5.860G

C8  5.865G

D8   5.866G



Using Effect:

Mini600 suits Phantom 2 very well, solving the problem of bad matching of battery bayonets.

MINI600_CT(3)



MINI600_SDS
